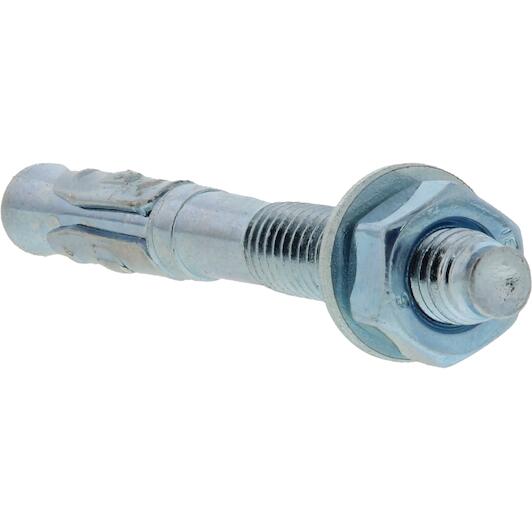

SPIT 050510 FIX 3 segment anchor M6X45/5 zinc-plated

SPIT
Supplier number: SPIT 050510 | EAN 3439510505106
0.46 tax incl.
€0.38 excl. VAT (incl. all environmental contributions)
On order: delivered from 14/10/2026

The minimum purchase order quantity for the product is 100.

  • Ordered before 20:00 - delivered as of 14/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium
✆ Talk to a specialist


Product information
€0.46
tax incl.

Product information

Key features according to our expert

  • Drilling diameter: 6 mm
  • Effective length: 5 mm
  • Overall length: 45 mm
  • Material (bolt): Steel
  • Surface treatment (bolt): Zinc plated
  • Thread designation: M6

Product description

  • Piercing anchor without approval
  • Anchor for standard applications
  • For use in non-cracked concrete
  • Long thread for flexible fixing thickness
  • Ideal for medium duty applications

Applications

  • Metal bracket
  • Masonry corner brackets

All Features

Drilling diameter
6 mm
Effective length
5 mm
Overall length
45 mm
Material (bolt)
Steel
Surface treatment (bolt)
Zinc plated
Thread designation
M6
Anchor diameter
6.0 mm
Min. thickness of base material
100 mm
Tightening torque
10 N-m
Maximum trapping
5 mm
Head type
Loose nut head
Min. anchor distance
40 mm
Base material colour
GREY
Drill diameter
6.0 mm
Product material
INOX A4
Min. edge distance (mm)
50 mm
Minimum drilling depth
41 mm
Throughput diameter
7 mm
Minimum placement depth
25.6 mm
Base material
Non-cracked concrete
Maximum installation depth
35 mm
Anchor length
45 mm
Surface treatment
Galvanised
Wire diameter
M6
Key size
10.0 mm
Anchor screw material
Steel
  • Brand SPIT
  • EAN 3439510505106
  • Supplier number SPIT 050510
