Product description

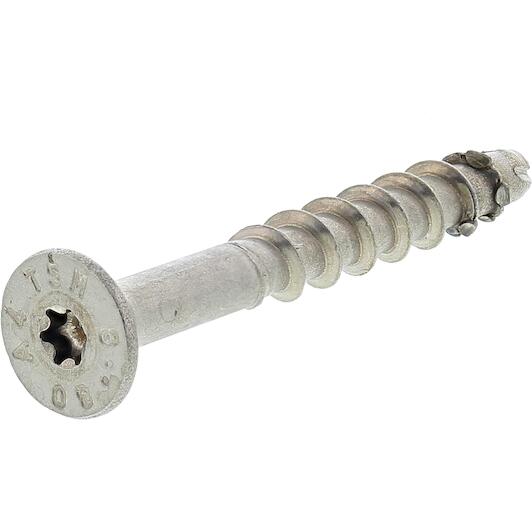

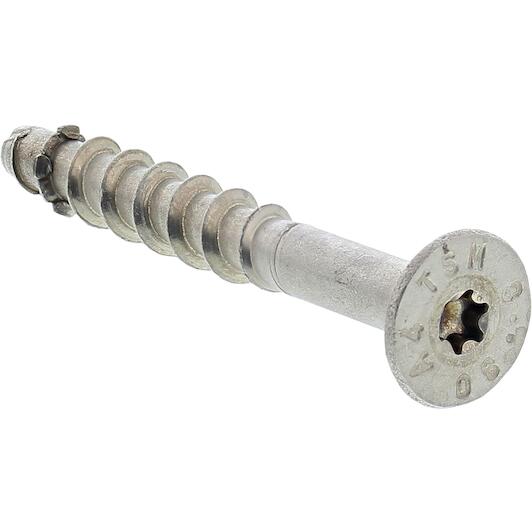

- Self-tapping stainless steel concrete screw with countersunk head for fastening in cracked and non-cracked concrete and for seismic application
- ETA seismically approved, fire-tested, leading concrete screw with excellent performance
- The entire ETA Option 1 range can be used in cracked and non-cracked concrete
- TAPCON XTREM range to be used in C1 and C2 seismic zones
- Fire certificate
- Stainless steel anchor for external conditions Longer effective thread ensures the best performance on the market
- New patented thread design for easy placement
- Adjustable plug for situations requiring alignment without loss of performance
- 3 anchoring depths for Ø8 & 10
Applications
- Pipes
- Suspended elements on ceiling or wall
- Suspended ceiling
- Temporary fixings
- Scaffolding
- Signposting
- Safety barriers
- Stadium seating
- Pallet racks
- Mechanical and electrical installations
- Cable ducts
- Window frames
- Railings
- HVAC
- Façades
- Awnings
- Balconies
Key features according to our expert
-
Diameter: 10 mm
-
Material: Stainless steel A4
-
Length: 90 mm
Specifications / All features
-
Brand:
SPIT
-
08085495
-
EAN:
3439510586549
-
Supplier number:
SPIT 058654
- Diameter
- 10 mm
- Material
- Stainless steel A4
- Length
- 90 mm
- Minimum drilling depth
- 65 mm
- Product material
- INOX A4
- Head type
- Countersunk head
- Min. anchor distance
- 40 mm
- Anchor diameter
- 10.0 mm
- Maximum trapping
- 35 mm
- Bit size
- TX 50
- Tightening torque
- 40 N-m
- Min. thickness of base material
- 130 mm
- Base material
- Cracked concrete, Non-cracked concrete
- Drill diameter
- 10.0 mm
- Minimum placement depth
- 55.0 mm
- Maximum installation depth
- 85 mm
- Throughput diameter
- 14 mm
- Anchor length
- 90 mm
- Min. edge distance (mm)
- 40 mm
