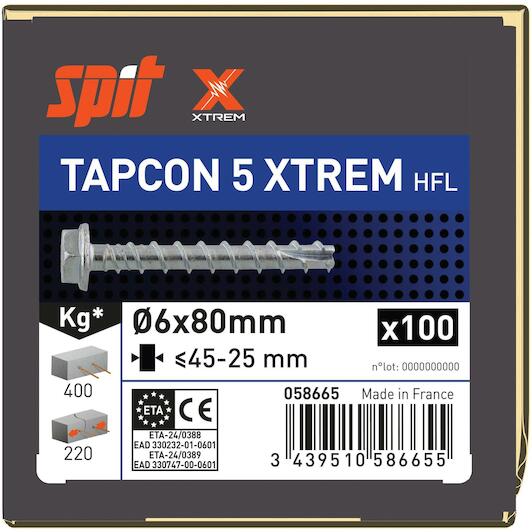

SPIT 058665 TAPCON 5 HF XTREM Ø6 concrete screw with hexagonal head 80/45 mm

Name: SPIT 058665 TAPCON 5 HF XTREM Ø6 concrete screw with hexagonal head 80/45 mm
Brand: SPIT
SKU: 03350108
Price: 0.69 EUR
Availability: PreOrder

0.69 tax incl.

€0.57 excl. VAT (incl. all environmental contributions)

SPIT 058665 TAPCON 5 HF XTREM Ø6 concrete screw with hexagonal head 80/45 mm

€0.69

On order: delivered from 23/05/2026

each

The minimum purchase order quantity for the product is 100.

Ordered before 20:00 - delivered as of 23/05/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

Product information

Product description

ETA-seismic approved, fire tested, leading concrete anchor with excellent performance

ETA-option 1 approval for cracked and uncracked concrete
C1 seismic approval for Ø6
Fire certificate
Anti-rotation ridges under the head reduce the risk of over-tightening the screw, for secure fixing
The 2 cutting edges at the end of the screw facilitate installation regardless of the quality of the concrete
Torx and hexagon connection for all placement possibilities, even for hard-to-reach applications
Full thread up to the head for maximum performance in full concrete and hollow-core slabs
Larger flange diameter
100% Made in Europe

Key features according to our expert

Diameter: 6 mm
Length: 80 mm

Specifications / All features

Brand: SPIT
03350108
EAN: 3439510586655
Supplier number: SPIT 058665

Diameter: 6 mm
Length: 80 mm
Min. edge distance (mm): 35 mm
Product material: Carbon steel
Head type: Hexagon head
Base material colour: GREY
Min. anchor distance: 35 mm
Anchor diameter: 6.0 mm
Maximum trapping: 45 mm
Bit size: SW 13 + TX 30
Min. thickness of base material: 80 mm
Minimum drilling depth: 40 mm
Minimum placement depth: 35.0 mm
Drill diameter: 6.0 mm
Base material: Cracked concrete, Hollow-core floor beams, Non-cracked concrete
Maximum installation depth: 55 mm
Throughput diameter: 8 mm
Anchor length: 80 mm
Treatment: Galvanised
