What drill bit diameter is required?

You need to use a drill bit with a 10 mm diameter.

Which drive type is needed for the screw?

The countersunk screw requires a TX40 Torx bit.

What base materials is this frame anchor suitable for?

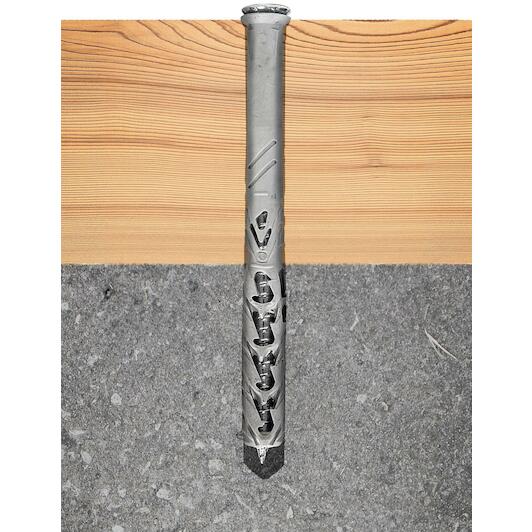

It is suitable for concrete, brickwork, and aerated concrete.

What is the maximum fixture thickness?

With an overall anchor length of 160 mm, the maximum fixture thickness is 110 mm.

Is the screw included with the anchor?

Yes, this frame plug comes supplied with the matching zinc-plated screw.

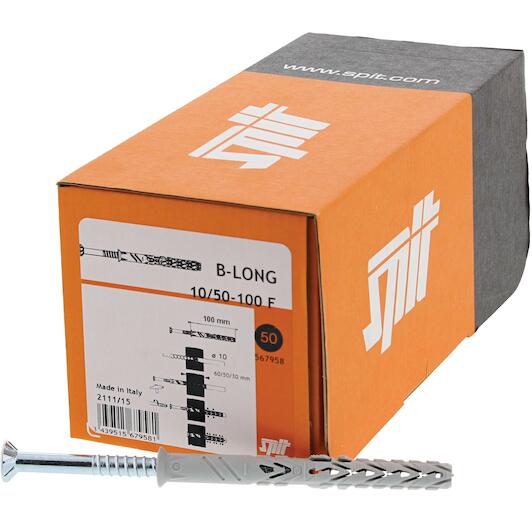

SPIT 567961 B-LONG universal zinc-plated construction plug with countersunk head and Torx connection 10x160/110 F TX40

Name: SPIT 567961 B-LONG universal zinc-plated construction plug with countersunk head and Torx connection 10x160/110 F TX40
Brand: SPIT
SKU: 02454525
Price: 1.95 EUR
Availability: InStock

Supplier number: SPIT 567961 | EAN 3439515679611

1.95 tax incl.

€1.61 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Ordered before 20:00 - delivered tomorrow 09/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Alternative to this product

FISCHER 522703 construction plug SXRL 10 x...

1.63

€1.35 excl. VAT

Delivery time average 12 days.

Solid anchoring using Spit frame plugs

Practical benefits

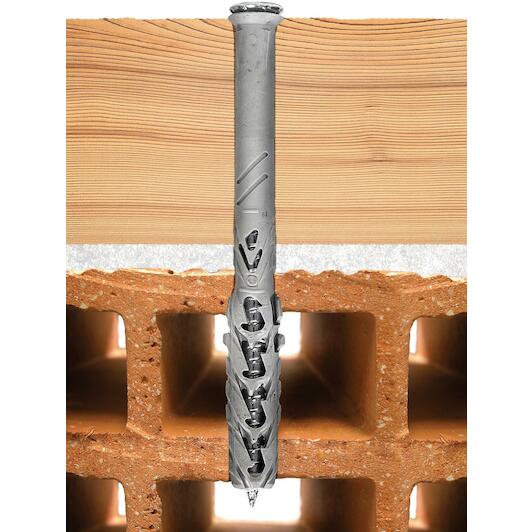

Reliable multi-material hold: You secure framing firmly into brickwork and aerated concrete thanks to the uniform expansion of the nylon body.
Flush countersunk finish: The countersunk head with TX40 drive provides optimal torque transfer and sits level with your fixture surface.
Reduced drilling depth: The short embedment requirement allows you to drill faster, reducing fatigue and saving installation time on site.

In a nutshell

The right choise for

With the Spit b-long frame plug, you securely anchor window frames, door frames, and heavy batten structures into concrete, brickwork, and aerated concrete. Thanks to its 160 mm overall length, you can complete direct through-fix installations on fixtures up to 110 mm thick with ease. The nylon body delivers uniform expansion for reliable holding power in masonry, while the short embedment depth reduces drilling time and effort using a 10 mm drill bit. Supplied with a matching zinc-plated countersunk screw, the TX40 drive provides maximum torque transfer without cam-out, delivering a neat, flush finish level with your timber or metal framework.

Product information FAQ

€1.95

In stock - tax incl.

Key features according to our expert

Length (Wall plug): 160 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
type (screw head): T40
Drilling diameter: 10 mm

Product description

Universal galvanised construction plug with countersunk head and Torx connection
Versatile frame & frame anchor with high performance
ETA-approved for fixings in concrete and masonry
Uniform expansion prevents rotation during application
Short anchor depth: only 40 mm for concrete, therefore less fixing time
High load values: up to 220 kg in concrete
Extra long lengths: fixing thickness up to 205 mm
Suitable for use in multiple materials, for a wide range of applications
Easy to install
Fire and seismic test reports

Applications

Windows
Doors
Fences

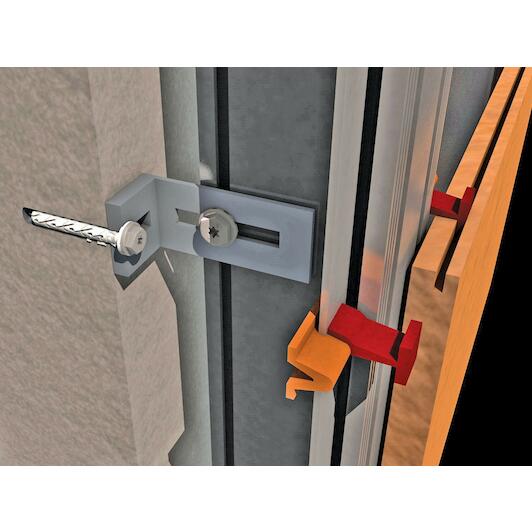

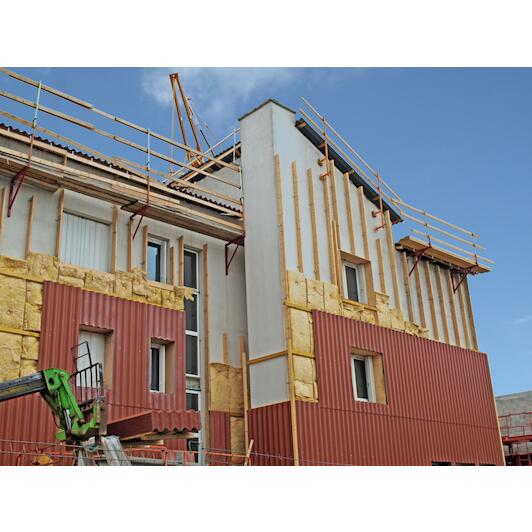

Ventilated facades
Cladding

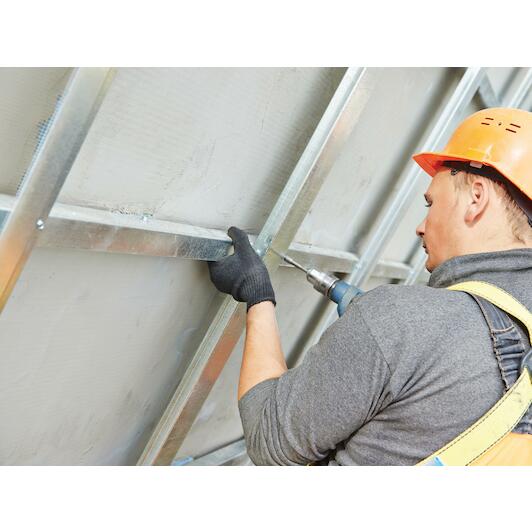

Metal framing
Insulation supports
Metal brackets and cross members

All Features

Length (wall plug): 160 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
Application: Brick; Aerated concrete
Type (screw head): T40
Drilling diameter: 10 mm
Anchor diameter: 10.0 mm
Anchoring depth: 50 mm
Maximum trapping: 110 mm
Min. edge distance (mm): 100 mm
Min. anchor distance: 200 mm
Base material colour: PURPLE
Head type: Countersunk head
Product material: Nylon
Tightening torque: 16 N-m
Bit size: TX 40
Anchor length: 160 mm
Min. thickness of base material: 100 mm
Minimum drilling depth: 60 mm
Drill diameter: 10.0 mm
Maximum installation depth: 50 mm
Throughput diameter: 10 mm
Surface treatment: Galvanised
Treatment: Galvanised

Brand SPIT
02454525
EAN 3439515679611
Supplier number SPIT 567961

Frequently asked questions about this product

Answered by specialists

What drill bit diameter is required?: You need to use a drill bit with a 10 mm diameter.
Which drive type is needed for the screw?: The countersunk screw requires a TX40 Torx bit.
What base materials is this frame anchor suitable for?: It is suitable for concrete, brickwork, and aerated concrete.
What is the maximum fixture thickness?: With an overall anchor length of 160 mm, the maximum fixture thickness is 110 mm.
Is the screw included with the anchor?: Yes, this frame plug comes supplied with the matching zinc-plated screw.
