What are the exact dimensions of this classic V-belt?

This profile B (17/B) belt has a top width of 17 mm and a height of 11 mm. It has an inside length (Li) of 1650 mm (65 inches), a datum length (Ld) of 1695 mm, and an outside length (La) of 1719 mm.

What does the L=L marking mean on this Conti belt?

The L=L mark indicates precise manufacturing tolerances, allowing identical belts to be used immediately in matched sets without manual sorting.

What temperature range can this V-belt withstand?

The V-belt operates reliably across an ambient temperature range of -55 °C to +70 °C.

Is this drive belt resistant to dust and oil?

Yes, it is dust-proof, suitable for tropical climates, and conditionally resistant to oil and grease.

What are the main applications for this V-belt?

It is designed for demanding drive systems in general machine engineering, agricultural equipment, and conveying technology according to DIN 2215.

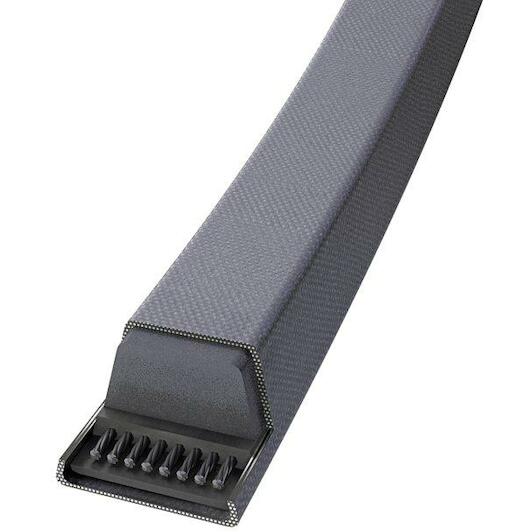

CONTI 17.0X1650 CONTI V-belt 17.0X 1650 Li / 1695 Ld B 65

Name: CONTI 17.0X1650 CONTI V-belt 17.0X 1650 Li / 1695 Ld B 65
Brand: CONTI
SKU: 05030264
Price: 60.13 EUR
Availability: InStock

Supplier number: CONTI 17.0X1650 | EAN 4010858361655

60.13 tax incl.

€49.70 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 6 products in stock.

Ordered before 20:00 - delivered as of 09/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Dependable power transmission for demanding drives

Practical benefits

Matched set operation guaranteed: The strict L=L manufacturing tolerance allows you to install multiple belts together without prior length matching.
High tensile core strength: Built with a robust PE cord, it resists stretching and smoothly handles heavy operational loads.
Durable wear resistant jacket: The protective fabric cover shields the belt against friction, dust, and continuous mechanical stress.

In a nutshell

The right choise for

With the Conti Conti-V V-belt 17/B, you ensure dependable and slip-free power transmission across industrial machinery, agricultural equipment, and conveying systems. Thanks to the precise L=L manufacturing tolerance, you can install multiple belts together in matched sets without manual length matching. The high-strength pe cord resists stretching and absorbs peak shock loads, while the durable outer jacket protects against dust and friction. Built in accordance with din 2215, this belt operates reliably at temperatures from -55 °C to +70 °C and offers conditional resistance to oil and grease.

Product information FAQ

€60.13

In stock - tax incl.

Key features according to our expert

Length: 65
Width: 17 mm
Height: 11 mm
Profile (V-belt): B
Reference length Ld: 1695 mm
Inner length Li: 1650 mm; 65 inch
Outer length La: 1719 mm
Material (cord): PE
Product line: CONTI V
RMA: B65
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 65
Width: 17 mm
Height: 11 mm
Profile (v-belt): B
Reference length ld: 1695 mm
Inner length li: 1650 mm; 65 inch
Outer length la: 1719 mm
Material (cord): PE
Product line: CONTI V
Rma: B65
Colour (manufacturer): Black

Brand CONTI
05030264
EAN 4010858361655
Supplier number CONTI 17.0X1650

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this classic V-belt?: This profile B (17/B) belt has a top width of 17 mm and a height of 11 mm. It has an inside length (Li) of 1650 mm (65 inches), a datum length (Ld) of 1695 mm, and an outside length (La) of 1719 mm.
What does the L=L marking mean on this Conti belt?: The L=L mark indicates precise manufacturing tolerances, allowing identical belts to be used immediately in matched sets without manual sorting.
What temperature range can this V-belt withstand?: The V-belt operates reliably across an ambient temperature range of -55 °C to +70 °C.
Is this drive belt resistant to dust and oil?: Yes, it is dust-proof, suitable for tropical climates, and conditionally resistant to oil and grease.
What are the main applications for this V-belt?: It is designed for demanding drive systems in general machine engineering, agricultural equipment, and conveying technology according to DIN 2215.
