What are the dimensions of this timing belt?

It features a nominal length of 2240 mm, a belt width of 68 mm, and a tooth pitch of 14 mm.

How many teeth does this Conti Synchrochain Carbon belt have?

The belt has 160 teeth across its full length of 2240 mm.

What tooth profile is used on this belt?

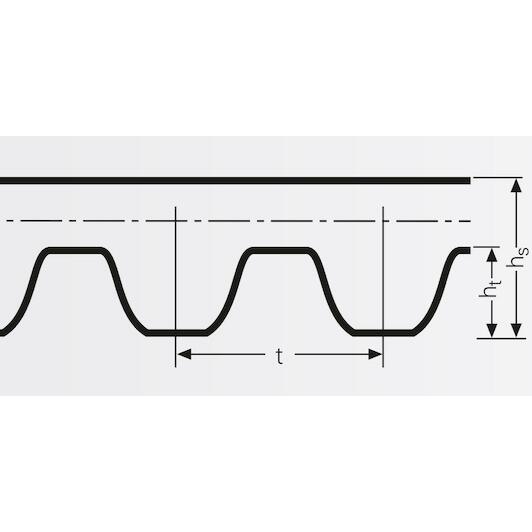

This timing belt uses a CTD C14M tooth profile.

What applications is this timing belt designed for?

It is built for high torques and heavy dynamic loads, serving as an effective alternative to chain drives.

What are the advantages of the carbon tension member?

Carbon cord tensile members provide extreme tensile strength with minimal elongation and virtually no tension loss.

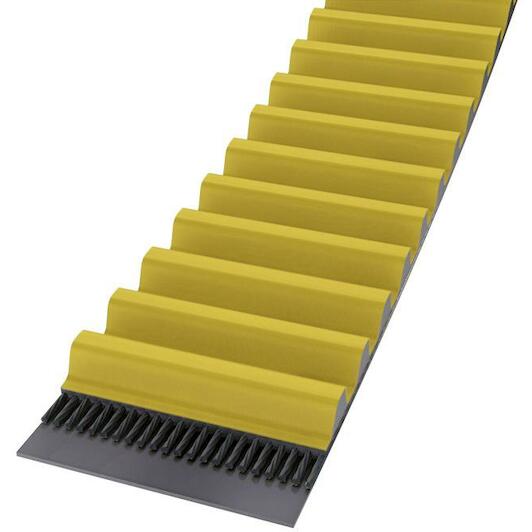

CONTI CTD 14M 2240 68 C20/25 S+Z Conti Synchrochain carbon timing belt - CTD14224068SCC

Name: CONTI CTD 14M 2240 68 C20/25 S+Z Conti Synchrochain carbon timing belt - CTD14224068SCC
Brand: CONTI
SKU: 02689096
Price: 3508.36 EUR
Availability: InStock

Supplier number: CONTI CTD14224068SCC | EAN 4051817283687

3,508.36 tax incl.

€2,899.48 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 22/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

High torque transmission with Conti Synchrochain Carbon

Practical benefits

Superior heavy duty power: The high-tensile carbon cord allows you to transmit extreme torques without stretching or losing belt tension over time.
Smooth mesh prevents slip: The engineered CTD C14M profile delivers harmonic tooth engagement, ensuring you avoid tooth jumping under heavy shock loads.
Completely maintenance free operation: Resistant to oils and wear, the rugged polyurethane build ensures you run demanding drives reliably without requiring lubrication.

In a nutshell

The right choise for

With the Conti Synchrochain Carbon ctd 14m C14m 2240 68 timing belt, you achieve high power transmission in demanding industrial drive systems. Thanks to the high-tensile carbon cord tension members, you transmit extreme torques without elongation or loss of tension, making this belt a quiet and effective alternative to roller chain drives. The engineered ctd C14m profile with 160 teeth and a 14 mm pitch delivers smooth tooth engagement that prevents tooth jumping under heavy shock loads. Built with a rugged polyurethane construction and a 68 mm width, it resists oils and chemicals to ensure reliable, wear-resistant, and completely maintenance-free operation without lubrication.

Product information FAQ

€3,508.36

In stock - tax incl.

Key features according to our expert

Length: 2240
Pitch: 14 mm
Width: 68 mm
Profile (timing belt): C14M
Product line: CONTI SYNCHROCHAIN CARBON
Nominal length: 2240 mm
Number of teeth: 160

Product description:

Heavy-duty timing belts for all extreme applications with extremely high torques, also suitable as a replacement for chain drives

Properties:

Temperature range
Depending on application
From -55 °C* to +80 °C
Increased power ratings
Longitudinally stable throughout its lifetime
Resistant to oils
Grease and fuel
Conditionally resistant to acid and lye
Raw materials and production are silicone free
Ozone-resistant
Suitable for tropical climates
Aging-resistant
Suitable for reverse flexing/reverse tensioning idlers
Maintenance-free

All Features

Length: 2240
Pitch: 14 mm
Width: 68 mm
Profile (timing belt): C14M
Product line: CONTI SYNCHROCHAIN CARBON
Nominal length: 2240 mm
Number of teeth: 160

Brand CONTI
02689096
EAN 4051817283687
Supplier number CONTI CTD14224068SCC

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this timing belt?: It features a nominal length of 2240 mm, a belt width of 68 mm, and a tooth pitch of 14 mm.
How many teeth does this Conti Synchrochain Carbon belt have?: The belt has 160 teeth across its full length of 2240 mm.
What tooth profile is used on this belt?: This timing belt uses a CTD C14M tooth profile.
What applications is this timing belt designed for?: It is built for high torques and heavy dynamic loads, serving as an effective alternative to chain drives.
What are the advantages of the carbon tension member?: Carbon cord tensile members provide extreme tensile strength with minimal elongation and virtually no tension loss.
