What are the main dimensions of this timing belt?

It features a pitch length of 896 mm, a width of 32 mm, an 8 mm pitch, and a total of 112 teeth.

What tooth profile does the Conti SilentSync W-896 use?

It uses the dedicated HOT 8M helical offset tooth profile corresponding to the White color code.

What is the benefit of Conti SilentSync technology?

The arrow-pattern tooth design ensures continuous engagement, significantly reducing noise and vibration during power transmission.

What does the White (W) designation signify?

In the Conti SilentSync range, the letter W and White color designate an 8 mm pitch paired with a 32 mm belt width.

Which sprockets or pulleys are compatible with this belt?

It must be used with matching SilentSync 8M sprockets designed for the W profile.

CONTI W- 896 8M 32 Conti SilentSync timing belt - W-896

Name: CONTI W- 896 8M 32 Conti SilentSync timing belt - W-896
Brand: CONTI
SKU: 02684471
Price: 465.15 EUR
Availability: PreOrder

Supplier number: CONTI W-896 | EAN 4010858515546

465.15 tax incl.

€384.42 excl. VAT (incl. all environmental contributions)

On order: delivered from 17/10/2026

Ordered before 20:00 - delivered as of 17/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

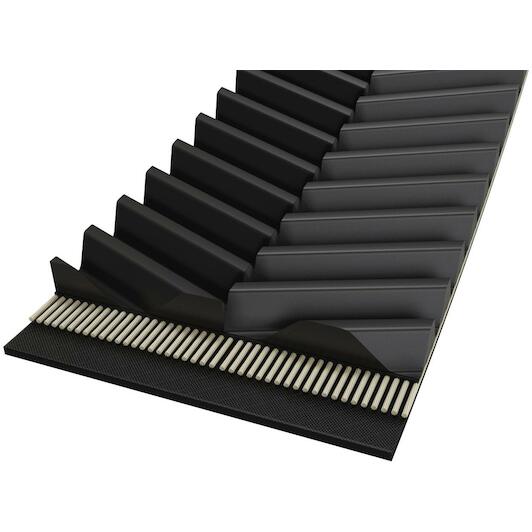

Conti SilentSync timing belt for quiet drives

Practical benefits

Ultra quiet drive operation: The helical offset tooth pattern rolls smoothly into sprockets, eliminating vibration and drastically reducing noise in your machinery.
Reliable self tracking design: Its continuous curved geometry keeps the belt perfectly centered on sprockets without needing mechanical guide flanges.
Complete maintenance free performance: You avoid downtime because the durable synthetic rubber and aramid tension cords require zero lubrication or routine retensioning.

In a nutshell

The right choise for

With the Conti SilentSync timing belt W-896, you upgrade industrial drive systems for ultra-quiet and smooth power transmission. Featuring a helical offset tooth hot 8m profile, the 112 teeth roll continuously into the sprockets to eliminate vibration and polygon effects seen in straight-tooth designs. Its arrow-pattern geometry is entirely self-tracking, removing the need for pulley flanges and saving valuable mounting space. Measuring 896 mm in length with a 32 mm width and an 8 mm pitch, it delivers reliable rotational synchronization without slip under demanding loads. Built with high-strength aramid cords, it gives you a maintenance-free solution requiring zero lubrication or routine retensioning.

Product information FAQ

€465.15

tax incl.

Key features according to our expert

Length: 896
Pitch: 8 mm
Width: 32 mm

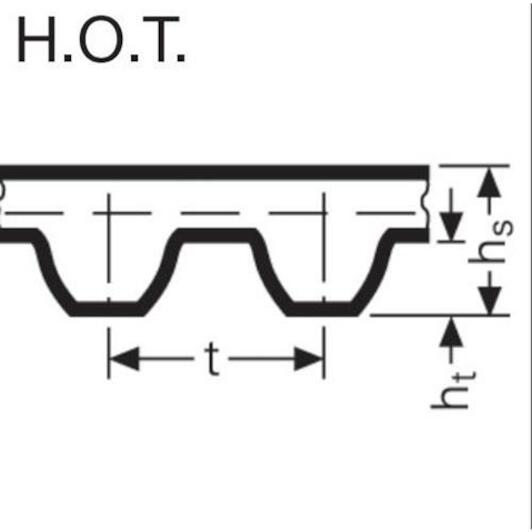

Profile (timing belt): HOT 8M - W
Product line: CONTI SILENTSYNC
Nominal length: 896 mm
Number of teeth: 112

Product description:

Self-tracking heavy-duty timing belts made for very quiet and reduced vibration operation; excellent choice for horizontal drives

Properties:

Temperature range
Depending on application
From -30 °C to +130 °C
Very low-noise
Electrically conductive to ISO 9563
Conditionally resistant to oil
Ozone-resistant
Aging-resistant
Maintenance-free

All Features

Length: 896
Pitch: 8 mm
Width: 32 mm
Profile (timing belt): HOT 8M - W
Product line: CONTI SILENTSYNC
Nominal length: 896 mm
Number of teeth: 112

Brand CONTI
02684471
EAN 4010858515546
Supplier number CONTI W-896

Frequently asked questions about this product

Answered by specialists

What are the main dimensions of this timing belt?: It features a pitch length of 896 mm, a width of 32 mm, an 8 mm pitch, and a total of 112 teeth.
What tooth profile does the Conti SilentSync W-896 use?: It uses the dedicated HOT 8M helical offset tooth profile corresponding to the White color code.
What is the benefit of Conti SilentSync technology?: The arrow-pattern tooth design ensures continuous engagement, significantly reducing noise and vibration during power transmission.
What does the White (W) designation signify?: In the Conti SilentSync range, the letter W and White color designate an 8 mm pitch paired with a 32 mm belt width.
Which sprockets or pulleys are compatible with this belt?: It must be used with matching SilentSync 8M sprockets designed for the W profile.
