Scope of delivery
- 1x set of AC72 crocodile clips
- 1x set of stackable measuring leads
- 1x set of TL 75 measuring leads
- User manual
Product description
Boost your calibration capability

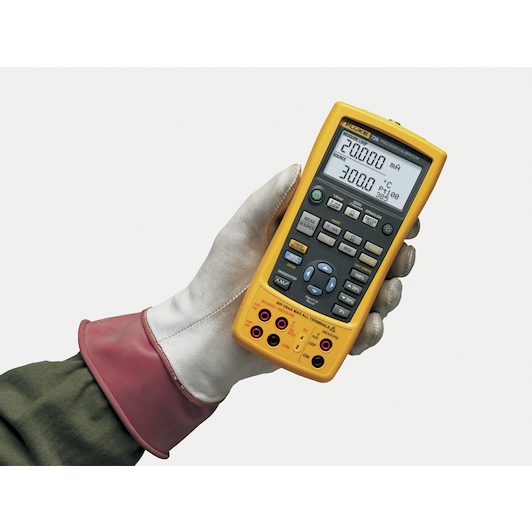

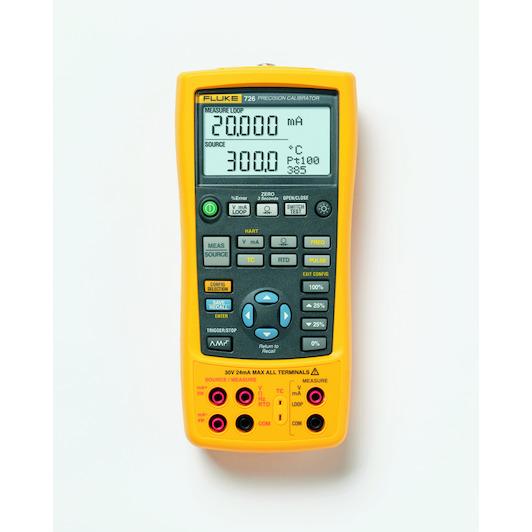

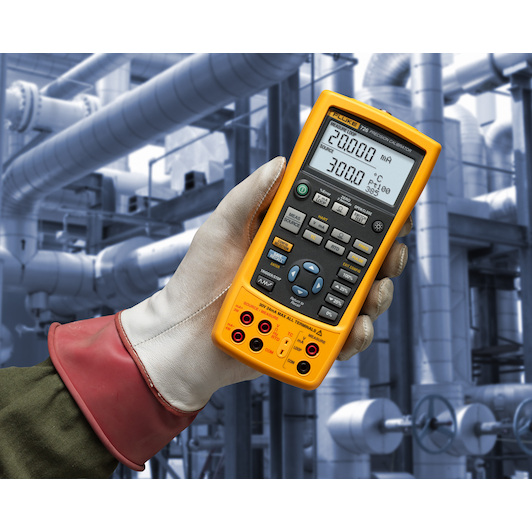

The Fluke 726 multi-function precision process calibrator was designed specifically for the process industry, where we envisaged a broad range of tasks, high calibration capability and unparalleled accuracy. The 726 measures and generates almost all process parameters and can calibrate almost anything. The 726 also interprets the results found without the need for a calculator, and stores measurement results for later analysis.
- Accurate performance of the measurement and calibration source, to within 0.01%.
- Two separate channels; measure, generate and display process signals simultaneously.
- Measure volts, mA, RTDs, thermocouples, frequency and ohms to test sensors and transmitters
- Generate/simulate volts, mA, thermocouples, RTDs, frequency and pressure to calibrate transmitters
- Measure or generate pressure* using one of 29 Fluke 700Pxx pressure modules
- Generate mA at simultaneous pressure measurements to perform control valve and I/P tests
- Integrated pressure switch test allows you to record switch set, reset and dead zone values.
- Memory storage for up to 8 calibration results, recall of locally measured and stored calibration data for later analysis
- Error rate calculation of transmitters, interpreting calibration results without calculator
- Perform linearity tests quickly with the automatic step and rise functions
- Power transmitters during tests with 24 V loop power supply and simultaneous mA measurement
- Store frequently used test settings for later use
- Frequency totaliser and frequency pulse train source mode for comprehensive testing of flowmeters.
- In HART mode, a 250-ohm resistor is interleaved when measuring and generating mA for compatibility with HART instrumentation.
- Proprietary RTD curves add calibration constants for certified RTD probes for extended temperature measurement.
- Newly designed input voltage protection for even greater reliability
- Three-year warranty
