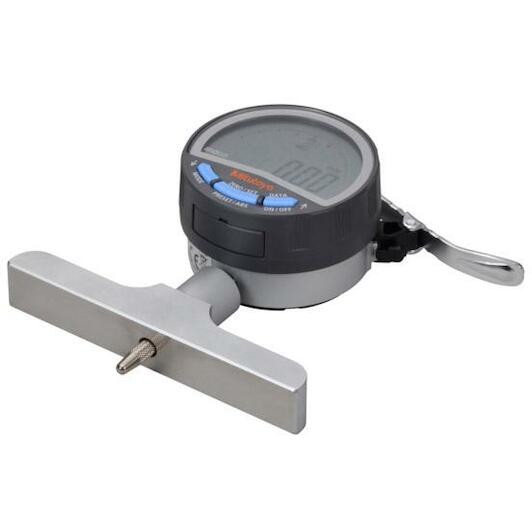

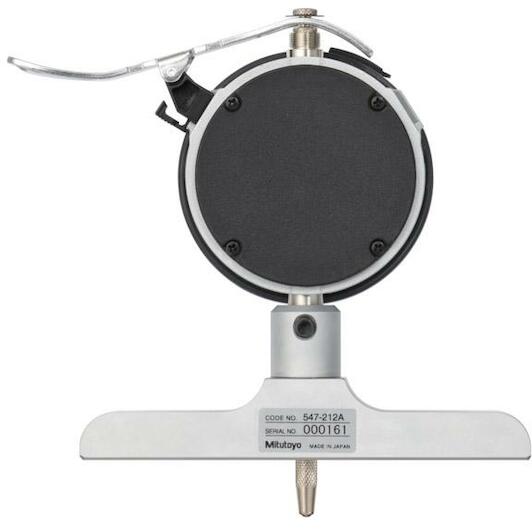

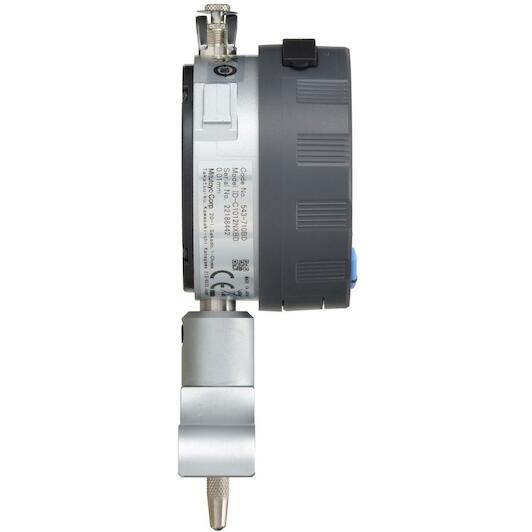

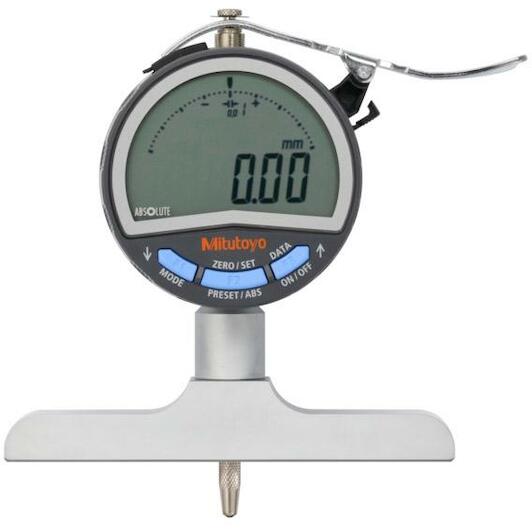

MITUTOYO 547-212A Digimatic depth dial with 101.6mm base 0-200mm, 0.01mm

Name: MITUTOYO 547-212A Digimatic depth dial with 101.6mm base 0-200mm, 0.01mm
Brand: MITUTOYO
SKU: 03276952
Price: 576.69 EUR
Availability: PreOrder

Supplier number: MITUTOYO 547-212A | EAN 4946368851969

576.69 tax incl.

€476.61 excl. VAT (incl. all environmental contributions)

On order: delivered from 07/10/2026

Ordered before 20:00 - delivered as of 07/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Accurate depth readings with the Mitutoyo gauge

Practical benefits

High precision digital readout: You obtain clear and consistent measurements with a fine 0.01 mm resolution on every surface.
Stable and ground base: The 101.6 mm wide hardened base provides a flat and solid foundation for repeated measurements.
Versatile extended measuring capacity: You can easily measure depths up to 200 mm using the included interchangeable extension rods.

In a nutshell

The right choise for

With the Mitutoyo 547-212A digital depth gauge, you perform accurate depth inspections with total confidence and control. Featuring a 0.01 mm resolution and ± 20 µm accuracy, it displays clear measurements directly on the digital screen, eliminating reading errors. The hardened, precision-ground 101.6 mm wide base delivers a flat, wobble-free foundation over bores, grooves, and recesses. With the included extension rods, you easily adjust the measuring capacity up to 200 mm to suit diverse workpieces. Built-in spc data output lets you export your readings swiftly into your quality management workflow, ensuring reliable dimensional control across the workshop or metrology lab.

Product information FAQ

€576.69

tax incl.

Key features according to our expert

Max. measuring value: 200 mm
Reading: 0,01 mm mm
Accuracy: ± 20 µm

Product description

Equipped with the ABSOLUTE Digimatic dial indicator ID-C
The base is made of hardened metal, precision ground and lapped

All Features

Max. measuring value: 200 mm
Reading: 0,01 mm mm
Accuracy: ± 20 µm

Brand MITUTOYO
03276952
EAN 4946368851969
Supplier number MITUTOYO 547-212A

Frequently asked questions about this product

Answered by specialists

What is the measuring range of this digital depth gauge?: The Mitutoyo 547-212A covers a measuring range of 0 to 200 mm using the included extension rods.
What accuracy and resolution does this instrument provide?: It provides an accuracy of ± 20 µm with a digital resolution of 0.01 mm.
What are the dimensions of the base?: The base measures 101.6 mm in width and 16 mm in thickness for stable positioning.
Can measurement data be exported?: Yes, this model features an SPC data output for connection to data management systems.
How do you achieve the maximum depth of 200 mm?: You combine the indicator with the included extension rods (10, 20, 30, and 100 mm).
