What is the measuring range of this depth gauge?

This dial depth gauge has a measuring range of 0 to 10 mm and a stroke of 10 mm.

What are the graduation and accuracy of this instrument?

The instrument features a graduation of 0.01 mm and an accuracy of ± 15 µm.

What are the dimensions of the base?

The rectangular base measures 40 x 16 mm with a base flatness of 5 µm.

What is the benefit of the needle contact point?

The needle contact point (0.2 mm radius) allows accurate measurement in narrow grooves and small recesses.

Is this depth gauge analog or digital?

This model is a mechanical, analog dial depth gauge with a clear dial face.

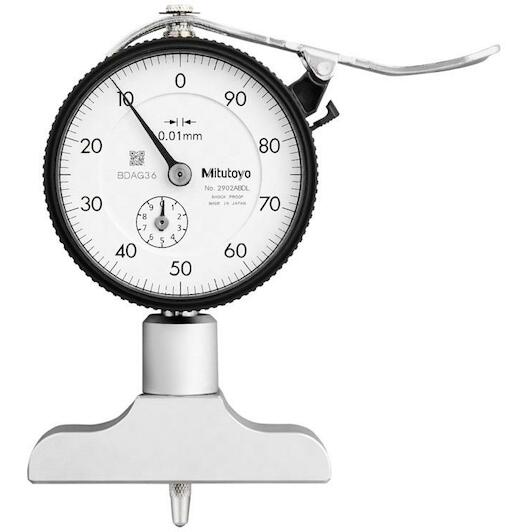

MITUTOYO 7210A dial gauge for depth measurement 0-10 mm with needle-shaped contact point

Name: MITUTOYO 7210A dial gauge for depth measurement 0-10 mm with needle-shaped contact point
Brand: MITUTOYO
SKU: 03219797
Price: 242.95 EUR
Availability: PreOrder

Supplier number: MITUTOYO 7210A | EAN 4946368851808

242.95 tax incl.

€200.79 excl. VAT (incl. all environmental contributions)

On order: delivered from 13/10/2026

Ordered before 20:00 - delivered as of 13/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

High-precision depth inspection with Mitutoyo 7210A

Practical benefits

Fine measuring resolution: With 0.01 mm graduations and ± 15 µm accuracy, you capture highly accurate dimensional depth data.
Access narrow recesses: The needle-shaped contact point enables you to reach directly into small holes and tight grooves.
Stable ground base: With a hardened and precision-lapped 40 mm by 16 mm reference face, you ensure steady positioning on your workpiece.

In a nutshell

The right choise for

With the Mitutoyo 7210A dial depth gauge, you perform accurate depth inspections in hard-to-reach recesses. The fine needle contact point reaches directly into narrow grooves, keyways, and small holes where standard probes cannot fit. Offering a measuring range of 0 to 10 mm, a fine graduation of 0.01 mm, and an accuracy of ± 15 µm, it lets you read depth variations instantly on the clear analog dial face. Its hardened and precision-lapped 40 x 16 mm reference base provides a steady and flat seating against your workpiece, ensuring consistent control during precision machining and quality checks.

Product information FAQ

€242.95

tax incl.

Key features according to our expert

Max. measuring value: 10 mm
Scale: 0,01 mm
Accuracy: ± 15 µm

Product description

Depth gauge with measuring bell and rectangular bridge piece
Hardened, precision ground and lapped reference surface on the bridge piece.

All Features

Max. measuring value: 10 mm
Scale: 0,01 mm
Accuracy: ± 15 µm

Brand MITUTOYO
03219797
EAN 4946368851808
Supplier number MITUTOYO 7210A

Frequently asked questions about this product

Answered by specialists

What is the measuring range of this depth gauge?: This dial depth gauge has a measuring range of 0 to 10 mm and a stroke of 10 mm.
What are the graduation and accuracy of this instrument?: The instrument features a graduation of 0.01 mm and an accuracy of ± 15 µm.
What are the dimensions of the base?: The rectangular base measures 40 x 16 mm with a base flatness of 5 µm.
What is the benefit of the needle contact point?: The needle contact point (0.2 mm radius) allows accurate measurement in narrow grooves and small recesses.
Is this depth gauge analog or digital?: This model is a mechanical, analog dial depth gauge with a clear dial face.
