Product description:

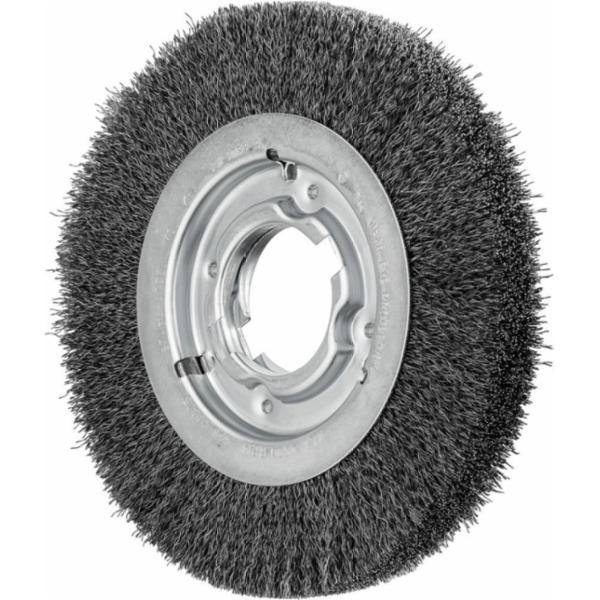

- Wheel brush wide crimped RBU dia. 200x25xvariable hole steel wire dia. 0.30 bench grinder
Characteristics:
- Excellent for medium-duty hand-held or automated brushing of workpieces with large surfaces
- Steel wire is the most common filament material
- Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring
- PFERD special wire has high tensile strength and bending fatigue strength
- This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing zapplications
- Steel wire withstands temperatures up to 300 °C
- Developed specially for industrial use
Advantages:
- Long tool life through use of PFERD special wire.
- Creates fine surfaces.
- High economic efficiency due to very long tool life.
- The special design enables bunching to create wide gapless rollers. This enables a uniform surface finish to be achieved.
- Can be used with all commercially available stationary drive systems and bench grinders thanks to the variable hole diameter.
- Highly flexible, enabling optimal adjustment to the workpiece contour.
Key features according to our expert
-
Brush diameter: 200 mm
-
Connection size (machine): 31,8 mm
-
Connection type (machine): Bore
-
Material (brush filament): Steel wire
-
Wire thickness: 0,3 mm
-
Twisted: No
-
Thickness: 25 mm
-
Max. no-load speed: 4500 rpm
Specifications / All features
-
Brand:
PFERD
-
04023686
-
EAN:
4007220658765
-
Supplier number:
PFERD 43506101
- Brush diameter
- 200 mm
- Connection size (machine)
- 31,8 mm
- Connection type (machine)
- Bore
- Material (brush filament)
- Steel wire
- Wire thickness
- 0,3 mm
- Twisted
- No
- Thickness
- 25 mm
- Max. no-load speed
- 4500 rpm
