PFERD

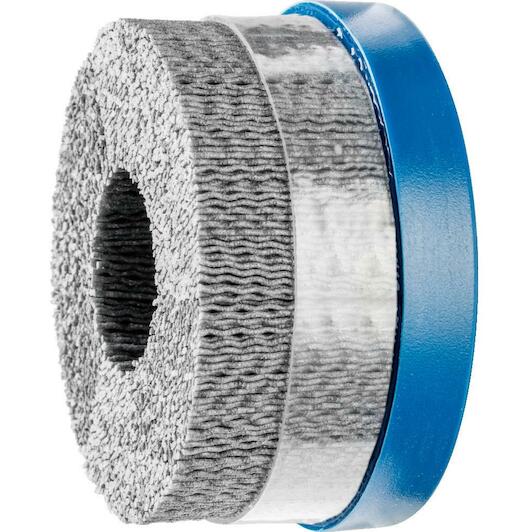

PFERD 79184130 COMPOSITE cup brush DBUR Ø 100x22.2 mm bore SiC filament wire dia. 1.10 mm grit 120 stationary

158.93 tax incl.
€131.35 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

  • PFERD COMPOSITE composite disc brush DBUR dia. 100x22.2 mm hole SiC filament dia. 1.10 mm grit 120 stationary

Characteristics

  • Particularly aggressive brush with bridle
  • Particularly suitable for deburring and work on surfaces on stationary machines

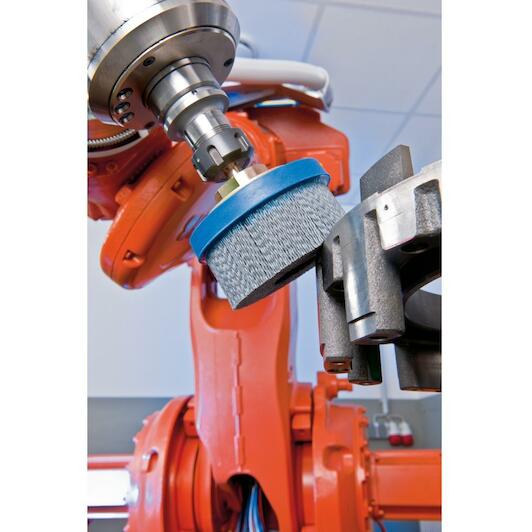

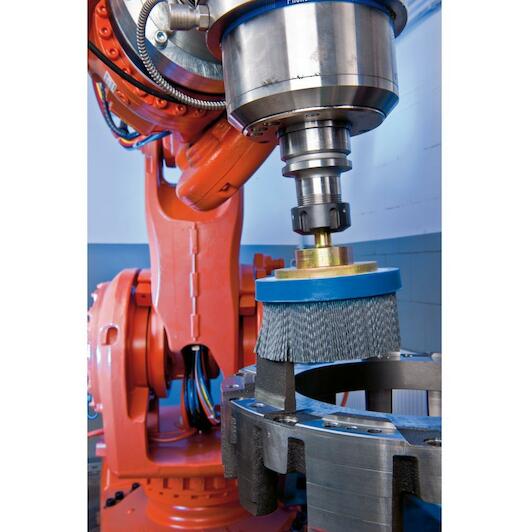

  • Composite brushes from PFERD have been specifically developed for industrial, automated use
  • They are suitable for a variety of applications and their variable clamping options mean that they can be used on many different drive systems
  • This offers the advantage that the workpiece can be produced and finished on the same machine
  • As a result, labour-intensive, manual work is reduced and reproducible results are achieved with short cycle times
  • For efficient use, numerous application parameters such as the processing time and feed rate must be coordinated with each other and a suitable brush must be selected
  • Brushes with silicon carbide (SiC) are particularly well suited to deburring work and surface improvement
  • Plastic filament withstands temperatures up to 220 °C

Advantages:

  • Long tool life and aggressive brushing effect due to a very high filament density.
  • Extremely smooth operation due to even distribution of the filament material.
  • The bridle prevents the wires spreading out sideways.
  • If the filament has worn away down to the bridle, it can be removed from the bridle for further use. This does not affect the brushing behaviour.
  • The bridle enables the spreading out and flexibility of the brush filament to be controlled.
  • Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
Key features according to our expert
  • Brush diameter: 100 mm
  • Connection size (machine): 22,2 mm
  • Connection type (machine): Bore
  • Twisted: No
  • Wire thickness: 1,1 mm
  • Material (brush filament): Silicon carbide
Specifications / All features
  • Brand: PFERD
  • EAN: 4007220808764
  • Supplier number: PFERD 79184130
Brush diameter
100 mm
Connection size (machine)
22,2 mm
Connection type (machine)
Bore
Twisted
No
Wire thickness
1,1 mm
Material (brush filament)
Silicon carbide
Filling material
Silicon carbide (SiC)
Processing tasks 3
Texturing (matting, seamless matting and satin)
Workable materials 12
Wood
ø shaft hole
22.2
Length, trim
38
Processing tasks 1
Deburring
Workable materials 3
Cast steel
Max. rpm
3500
ø outside metric
100
Grit size
120
Workable materials 7
Stainless steel (INOX)
Workable materials 10
Steel up to 1,200 N/mm² (< 38 HRC)
ø topping material
1.1
Rpm, opt., to
2300
Processing tasks
Cleaning
Workable materials 4
Cobalt-based alloys
Workable materials 1
Bronze
Workable materials 6
Other non-ferrous metals
Workable materials
Aluminium
Workable materials 2
Cast iron
Workable materials 5
Duroplast
Processing tasks 2
Roughening
Length, siege to ring
19
Workable materials 11
Thermoplastics
Recording system
Shaft hole
Workable materials 8
Steel, cast steel
Workable materials 9
Steel grades with hardness > 54 HRC
Rpm, opt., of
1400
