Product Description:

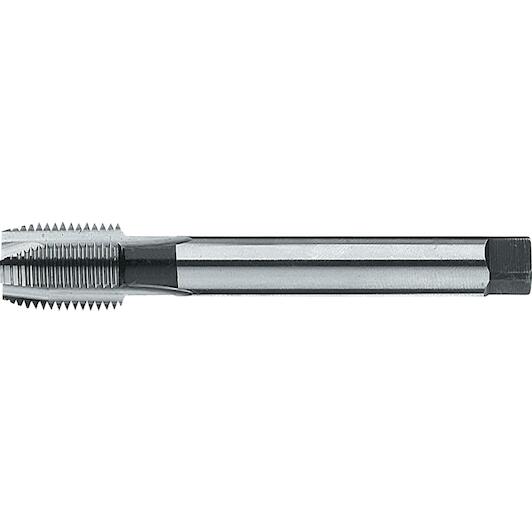

- Phantom HSS-E Machine Tap DIN 5156 BSP (G)
- DIN 5156, 55°, reduced shank, Gun nosed for through holes, lead 5 chamfer
Supplier number:
PHANTOM 251000973
|
EAN
8716563345954
46.34
tax incl.
€38.30 excl. VAT (incl. all environmental contributions)
Clean thread cutting for through holes
Practical benefits- Durable HSS-E steel construction: The premium cobalt-alloyed high-speed steel provides high wear resistance and a long tool lifespan.
- Efficient forward chip evacuation: Designed specifically for through holes, the spiral point pushes metal chips forward to prevent flute clogging.
- Standardized DIN 5156 BSP thread: You cut accurate 1/8"-28 gas threads with consistent pitch for dependable, tight fitting connections.
In a nutshell
The right choise forWith the Phantom 25.100 machine tap, you cut clean and accurate right-hand bspp gas threads in through holes. Crafted from durable hss-e tool steel, this tap delivers excellent wear resistance and dependable performance across various metals. The spiral point design pushes chips forward through the hole, effectively preventing clogging and protecting thread quality. Built to din 5156 specifications with a 1/8"-28 tpi thread size and a maximum cutting depth of 20 mm, it helps you create tight fitting, leak-proof connections. The 7 mm shank with a 5.5 mm drive square ensures firm, stable clamping in your machine.
Product information
Key features according to our expert
- Thread size: 1/8"
- Max. cutting depth: 20
- Thread type: BSPP
- Material (machine tap): HSS-E
- With innercooling: No
- Application (machine tap): Through hole
- Square size: 5,5 mm
- Shank type: External square
- Shank size: 7 mm
- Cutting direction: Right
- Pitch: 28 tpi
All Features
- Thread size
- 1/8"
- Max. cutting depth
- 20
- Thread type
- BSPP
- Material (machine tap)
- HSS-E
- With innercooling
- No
- Application (machine tap)
- Through hole
- Square size
- 5,5 mm
- Shank type
- External square
- Shank size
- 7 mm
- Cutting direction
- Right
- Pitch
- 28 tpi
- Pre-drilling diameter (ø)
- 8,8 mm
- Total length (l1)
- 90 mm
- Tool material
- HSS-E
- Flute length (l2)
- 20 mm
- Tolerance d2 (tol. d2)
- h9
- Coolant feed
- No
- Thread diameter (d1)
- G 1/8
- Square wide (sw)
- 5,5 mm
- Norm
- DIN 5156
- Shank ø (d2)
- 7 mm
- Hole type
- for through holes
- Surface
- Bright
- Shape
- B
- Pitch-inch (tpi)
- 28 Threads per inch
- Brand PHANTOM
- EAN 8716563345954
- Supplier number PHANTOM 251000973
Frequently asked questions about this product
Answered by specialists
- What type of holes is this machine tap designed for?
- This tap is designed for through holes according to DIN 5156.
- What thread type does this tap produce?
- It cuts right-hand BSPP (G) gas thread in size 1/8" with a pitch of 28 TPI.
- What are the shank dimensions?
- The shank has a 7 mm diameter with a 5.5 mm drive square.
- What is the maximum cutting depth?
- The maximum cutting depth is 20 mm.
- Does this machine tap have an internal cooling channel?
- No, this model does not have internal coolant channels.
