Product Description:

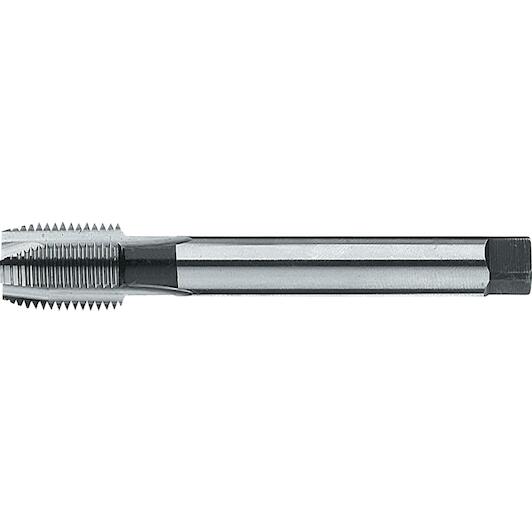

- Phantom HSS-E DIN 5156 BSP (G)
- DIN 5156, 55°, reduced shank, Gun nosed for through holes, lead 5 chamfer
Supplier number:
PHANTOM 251001316
|
EAN
8716563345961
62.62
tax incl.
€51.75 excl. VAT (incl. all environmental contributions)
Clean pipe threading in through holes
Practical benefits- Durable cutting performance: The robust HSS-E cobalt steel construction ensures you maintain sharp cutting edges across demanding metal applications.
- Smooth forward chip evacuation: The spiral point pushes chips forward through the hole, preventing clogging and protecting thread quality.
- Secure drive without slippage: Featuring an 11 mm shank with a 9 mm square drive, you achieve rigid clamping in tap holders.
In a nutshell
The right choise forWith the Phantom 25.100 machine tap, you cut precise right-hand bspp pipe threads in through holes in accordance with din 5156. Its spiral point smoothly pushes chips forward through the hole, protecting the newly cut thread from clogging or damage. Manufactured from durable hss-e cobalt steel, this tool maintains sharp cutting edges and delivers high wear resistance across demanding metalworking tasks. Designed for 1/4"-19 threading with a maximum cutting depth of 22 mm, the 11 mm shank with 9 mm square drive ensures rigid, slippage-free clamping in your tap holder.
Product information
Key features according to our expert
- Thread size: 1/4"
- Max. cutting depth: 22
- Thread type: BSPP
- Material (machine tap): HSS-E
- With innercooling: No
- Application (machine tap): Through hole
- Square size: 9 mm
- Shank type: External square
- Shank size: 11 mm
- Cutting direction: Right
- Pitch: 19 tpi
All Features
- Thread size
- 1/4"
- Max. cutting depth
- 22
- Thread type
- BSPP
- Material (machine tap)
- HSS-E
- With innercooling
- No
- Application (machine tap)
- Through hole
- Square size
- 9 mm
- Shank type
- External square
- Shank size
- 11 mm
- Cutting direction
- Right
- Pitch
- 19 tpi
- Pre-drilling diameter (ø)
- 11,8 mm
- Total length (l1)
- 100 mm
- Tool material
- HSS-E
- Flute length (l2)
- 22 mm
- Tolerance d2 (tol. d2)
- h9
- Coolant feed
- No
- Thread diameter (d1)
- G 1/4
- Square wide (sw)
- 9 mm
- Norm
- DIN 5156
- Shank ø (d2)
- 11 mm
- Hole type
- for through holes
- Surface
- Bright
- Shape
- B
- Pitch-inch (tpi)
- 19 Threads per inch
- Brand PHANTOM
- EAN 8716563345961
- Supplier number PHANTOM 251001316
Frequently asked questions about this product
Answered by specialists
- What hole type is this machine tap designed for?
- This tap is designed for through holes in accordance with DIN 5156.
- What type of thread does this tool cut?
- It cuts a right-hand 1/4" BSPP gas thread with a pitch of 19 TPI.
- What material is the tap made of?
- It is made of high-quality HSS-E for durable cutting performance and wear resistance.
- What are the shank and square drive dimensions?
- The tool features an 11 mm shank diameter and a 9 mm square drive.
- Does this machine tap have internal coolant channels?
- No, this model does not have an internal coolant channel.
