Product Description:

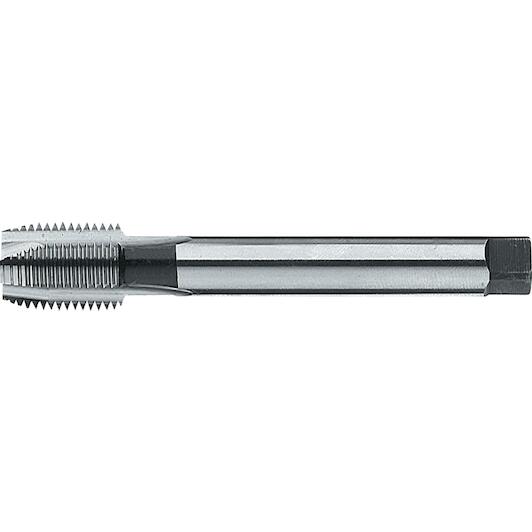

- Phantom HSS-E Machine Tap DIN 5156 BSP (G)
- DIN 5156, 55°, reduced shank, Gun nosed for through holes, lead 5 chamfer
Supplier number:
PHANTOM 251003325
|
EAN
8716563346029
175.61
tax incl.
€145.13 excl. VAT (incl. all environmental contributions)
Precise pipe threading for through holes
Practical benefits- Extended high-speed cutting life: The premium HSS-E construction provides superior wear resistance and thermal stability during rigorous tapping tasks.
- Smooth forward chip evacuation: Specifically engineered for through holes, this tool pushes chips forward to prevent tap clogging.
- Accurate pipe thread connections: You create reliable 1" BSP threads with 11 tpi using this Phantom machine tap.
In a nutshell
The right choise forCut precise right-hand 1" bspp pipe threads with 11 tpi in through holes using the Phantom machine tap. Crafted from premium hss-e steel, this tool delivers outstanding wear resistance and extended cutting life during demanding machining tasks. Its specialized geometry smoothly clears chips forward through the open hole to prevent clogging and protect the thread profile. Featuring a 25 mm shank, a 20 mm square drive, and a maximum cutting depth of 30 mm, it provides dependable stability and accuracy for all your threading operations.
Product information
Key features according to our expert
- Thread size: 1"
- Max. cutting depth: 30
- Thread type: BSPP
- Material (machine tap): HSS-E
- With innercooling: No
- Application (machine tap): Through hole
- Square size: 20 mm
- Shank type: External square
- Shank size: 25 mm
- Cutting direction: Right
- Pitch: 11 tpi
All Features
- Thread size
- 1"
- Max. cutting depth
- 30
- Thread type
- BSPP
- Material (machine tap)
- HSS-E
- With innercooling
- No
- Application (machine tap)
- Through hole
- Square size
- 20 mm
- Shank type
- External square
- Shank size
- 25 mm
- Cutting direction
- Right
- Pitch
- 11 tpi
- Pre-drilling diameter (ø)
- 30,75 mm
- Total length (l1)
- 160 mm
- Tool material
- HSS-E
- Flute length (l2)
- 30 mm
- Tolerance d2 (tol. d2)
- h9
- Coolant feed
- No
- Thread diameter (d1)
- G 1
- Square wide (sw)
- 20 mm
- Norm
- DIN 5156
- Shank ø (d2)
- 25 mm
- Hole type
- for through holes
- Surface
- Bright
- Shape
- B
- Pitch-inch (tpi)
- 11 Threads per inch
- Brand PHANTOM
- EAN 8716563346029
- Supplier number PHANTOM 251003325
Frequently asked questions about this product
Answered by specialists
- What type of holes is this machine tap designed for?
- This machine tap is specifically designed for threading through holes.
- What thread type and size does this tap cut?
- It cuts a right-hand 1" BSPP gas thread with a pitch of 11 tpi.
- What material is used for this machine tap?
- The tap is made of cobalt-alloyed HSS-E high-speed steel.
- What are the shank and square drive dimensions?
- The shank has a diameter of 25 mm and the square drive measures 20 mm.
- Does this tap feature internal coolant channels?
- No, this machine tap does not have an internal coolant hole.
