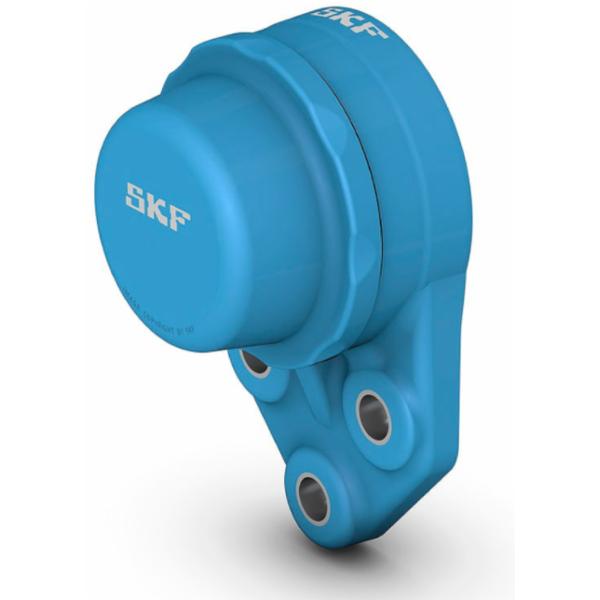

SKF F3BBC 40M-CPSS-DFH Y-bearing unit with flange 3-bolt support, d 40 mm, A 38 mm
Key features according to our expert
- Shaft diameter: 40 mm
- Split: No
- Material (bearing housing): Composite
- Material (bearing): Stainless steel
- High temperature: No
- Bore type: Cylindrical
- Shape (bearing housing): Triangle (one-sided)
Specifications / All features
- Brand: SKF
- EAN: 7316577874771
- Supplier number: SKF F3BBC 40M-CPSS-DFH
- Shaft diameter
- 40 mm
- Split
- No
- Material (bearing housing)
- Composite
- Material (bearing)
- Stainless steel
- High temperature
- No
- Bore type
- Cylindrical
- Shape (bearing housing)
- Triangle (one-sided)
- Lubricant
- Grease
- Material, housing
- Composite for the SKF Food Line
- Basic static load rating
- 19 kN
- Number of bolt holes for fasteners
- 3
- Material, bearing
- Stainless steel
- Rubber seating ring
- Without
- Sealing type
- Contact, gutter
- Sealing, bearing
- Seal on both sides and flinger on one side
- Retaining feature, inner ring
- Set screws
- Flanged housing type
- 3-bolt bracket
- Bearing width, total
- 40.7 mm
- Fastening bolt hole type
- Plain
- Grease fitting
- Without
- Sealing, unit
- End cover and back seal
- Limiting speed
- 500 r/min
- Relubrication hole
- Without
- Housing overall width
- 38 mm
- Basic dynamic load rating
- 24.7 kN
- Coating
- Without
- Housing type
- Flanged
