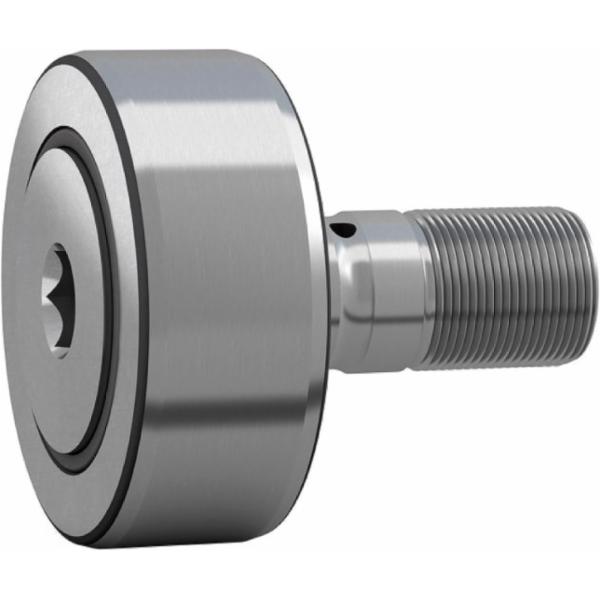

SKF NUKR 47 XA cam roller with integrated seal and relubrication 47 mm

Show more features

Outer diameter

47 mm

Stud diameter

20 mm

With eccentric collar

NO

Number of rows

2

Outer ring profile

Cylindrical

Width

66 mm

Width, outer ring

24 mm

Basic static load rating

33.5 kN

Relubrication feature

Centre of each stud end and radial hole in stud shank

Lubricant

Grease

Feature for tightening

Hexagonal recess

Sealing type

Labyrinth

Cage

Without

Tolerance class

Other

Material, bearing

Bearing steel

Functional outside diameter

47 mm

Rolling elements

Cylindrical rollers

Radial internal clearance

Between C2 and CN

Sealing

Seal on both sides

Number of flanges, outer ring

2

Limiting speed

3,800 r/min

Basic dynamic load rating

28.6 kN

Coating

Without

Length

66 mm

Stud alignment

Centric
