Product description:

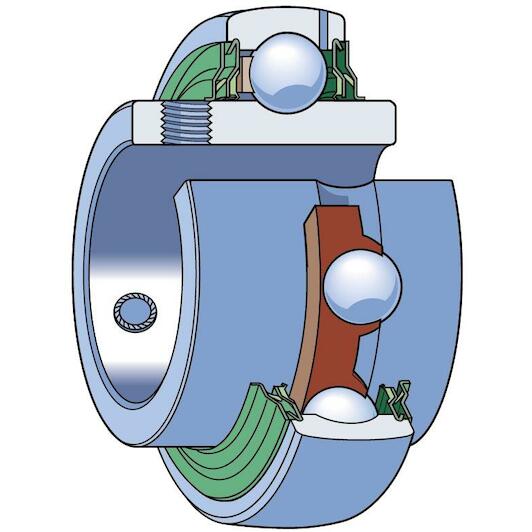

- SKF self-aligning thrust washer bearing for heavy duty (2F) or very heavy duty (-2RF) conditions.
- Fixation on shaft by means of two socket-head screws on extended inner ring
- Spherical outer ring with lubrication holes and inner ring extended on both sides
Key features according to our expert
-
Inner diameter: 20 mm
-
Width: 31 mm
-
Material (bearing): Steel
-
Material (cage): Plastic
-
High temperature: No
-
Bore type: Cylindrical
-
Inner ring extension: On both sides
-
Outer diameter: 47 mm
Specifications / All features
-
Brand:
SKF
-
01194574
-
EAN:
7316573478133
-
Supplier number:
SKF YAR 204-2RF/VE495

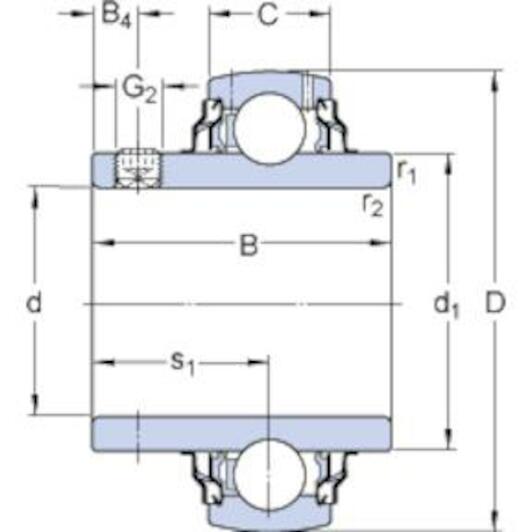

- Inner diameter
- 20 mm
- Width
- 31 mm
- Material (bearing)
- Steel
- Material (cage)
- Plastic
- High temperature
- No
- Bore type
- Cylindrical
- Inner ring extension
- On both sides
- Outer diameter
- 47 mm
- Lubricant
- Grease
- Retaining feature, inner ring
- Set screws
- Basic static load rating
- 6.55 kN
- Relubrication feature
- With
- Cage
- Non-metallic
- Rubber seating ring
- Without
- Width, outer ring
- 14 mm
- Sealing type
- Contact, multiple
- Outer ring type
- Spherical
- Material, bearing
- Bearing steel
- Sealing
- Seal and flinger on both sides
- Limiting speed
- 5,000 r/min
- Note
- Limiting speed with shaft tolerance h6
- Width, total
- 31 mm
- Width, inner ring
- 31 mm
- Bore diameter
- 20 mm
- Basic dynamic load rating
- 12.7 kN
- Coating
- Zinc-coated rings
- Outside diameter
- 47 mm
- Rolling elements
- Balls
