What are the dimensions of this Conti V-belt?

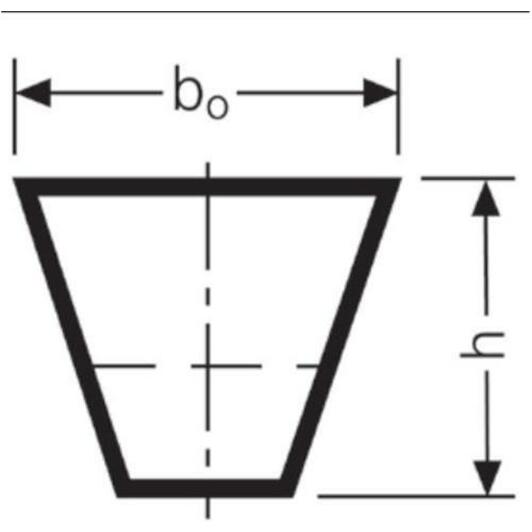

This XPZ profile narrow V-belt has a top width of 9.7 mm, a height of 8 mm, a datum length Ld of 1037 mm, and an outside length La of 1049 mm.

Which standards and profile codes apply to this belt?

It complies with metric XPZ profile standards under DIN 7753 / ISO 4184 and corresponds to RMA designations 3VX408 / 3VX 410.

What material is used for the tension member?

The cord is made of high-quality PE (polyester) to deliver reliable power transmission with minimal elongation during operation.

What is the operating temperature range for this V-belt?

This heavy-duty belt is designed to perform reliably in temperatures ranging from -40 °C up to +130 °C.

Is this V-belt resistant to dust and oil?

Yes, it is dust-proof, suitable for tropical climates, antistatic according to ISO 1813, and conditionally oil-resistant.

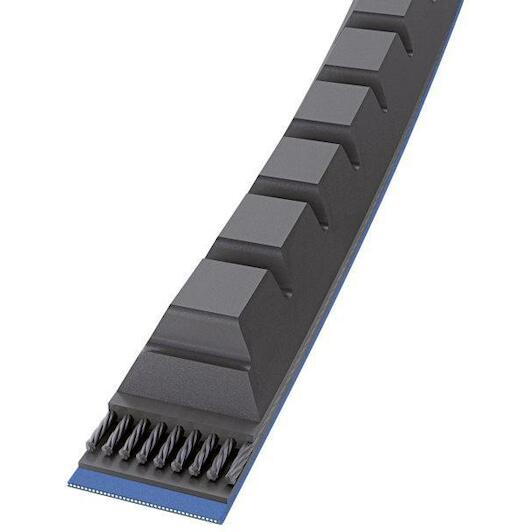

CONTI XPZ1037P CONTI V FO PIONEER belt XPZ 1037 Ld Pio 3VX 410

Name: CONTI XPZ1037P CONTI V FO PIONEER belt XPZ 1037 Ld Pio 3VX 410
Brand: CONTI
SKU: 02679047
Price: 26.93 EUR
Availability: InStock

Supplier number: CONTI XPZ1037P | EAN 4010858973414

26.93 tax incl.

€22.26 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 6 products in stock.

Ordered before 20:00 - delivered tomorrow 17/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Efficient heavy-duty power transmission

Practical benefits

High power with Conti: You transmit high rotational power smoothly due to the precision raw-edge molded XPZ profile.
Wide operating temperature range: You run demanding machinery reliably in extreme conditions ranging from -40 °C up to +130 °C.
Stable tension under load: The durable polyester tensile cord minimizes belt elongation to keep your machine drives running consistently.

In a nutshell

The right choise for

With the Conti xpz 1037 V-belt, you ensure efficient and smooth power transmission across industrial machinery and equipment drives. Its raw-edge molded xpz profile provides dependable grip and reduces vibrations, making it well-suited for compact setups with small pulley diameters. The robust polyester tensile cords maintain consistent belt tension and minimize elongation under heavy mechanical loads. Built to operate reliably in harsh conditions, this narrow V-belt handles extreme temperatures from -40 °C up to +130 °C. It is also dust-proof, antistatic according to iso 1813, and conditionally oil-resistant, helping you prevent unexpected downtime and keep operations running reliably.

Product information FAQ

€26.93

In stock - tax incl.

Key features according to our expert

Length: 1037
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): XPZ
Reference length Ld: 1037 mm
Inner length (Li): 999 mm; 39,33 inch
Outer length (La): 1049 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
RMA: 3VX408
Colour (manufacturer): Black/Blue

Product description:

Transversely stiff raw-edge heavy-duty V-belts according to DIN 7753, for powerful, sustained power transmission with enhanced running smoothness

Properties:

Temperature range from -40 °C to +130 °C
Application-specific
Very good flexibility thanks to molded teeth
Enhanced running smoothness
Matched-set L=L (from 1
000 mm) serial production
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1037
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): XPZ
Reference length ld: 1037 mm
Inner length (li): 999 mm; 39,33 inch
Outer length (la): 1049 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
Rma: 3VX408
Colour (manufacturer): Black/Blue

Brand CONTI
02679047
EAN 4010858973414
Supplier number CONTI XPZ1037P

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this Conti V-belt?: This XPZ profile narrow V-belt has a top width of 9.7 mm, a height of 8 mm, a datum length Ld of 1037 mm, and an outside length La of 1049 mm.
Which standards and profile codes apply to this belt?: It complies with metric XPZ profile standards under DIN 7753 / ISO 4184 and corresponds to RMA designations 3VX408 / 3VX 410.
What material is used for the tension member?: The cord is made of high-quality PE (polyester) to deliver reliable power transmission with minimal elongation during operation.
What is the operating temperature range for this V-belt?: This heavy-duty belt is designed to perform reliably in temperatures ranging from -40 °C up to +130 °C.
Is this V-belt resistant to dust and oil?: Yes, it is dust-proof, suitable for tropical climates, antistatic according to ISO 1813, and conditionally oil-resistant.
