Product description:

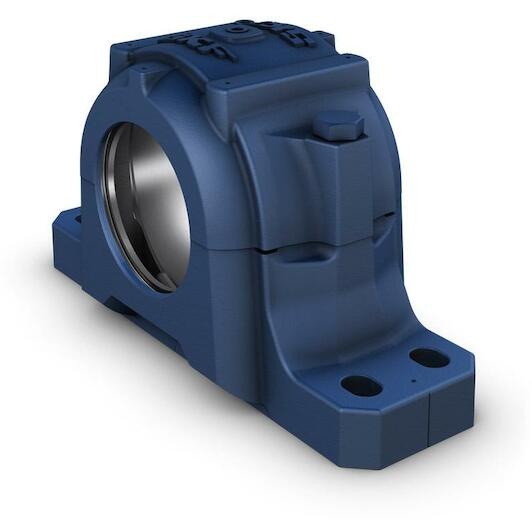

- Split upright bearing housing for pendulum roller bearings
Supplier number:
SKF FSNLD 517
|
EAN
7316573298076
Product information
Key features according to our expert
- Seat diameter: 150 mm
- Material (bearing housing): Cast iron
Documents
All Features
- Seat diameter
- 150 mm
- Material (bearing housing)
- Cast iron
- Housing type
- Plummer/pillow block
- Centre height (pillow block)
- 95 mm
- Housing configuration
- Two-piece
- Number of bolt holes for fasteners
- 4
- Material, housing
- Spheroidal graphite cast iron
- Centre distance between bolt holes
- 260 mm
- Centre distance between bolt holes (axial direction)
- 50 mm
- Diameter of bearing seat
- 150 mm
- Attachment bolt diameter
- 16 mm
- Bearing housing seal type
- Without
- Mounting arrangement
- Through shaft/Shaft end
- Housing lubrication feature/possibility
- Grease
- Width of bearing seat
- 61 mm
- Brand SKF
- EAN 7316573298076
- Supplier number SKF FSNLD 517
