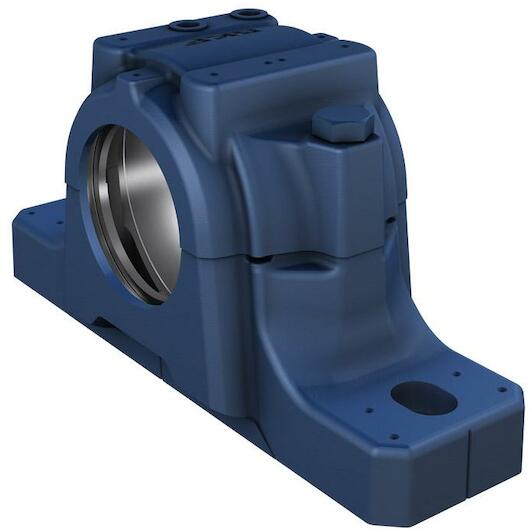

SKF SNL 513-611 K7 standing bearing housing cast iron two-piece 120 mm

SKF
Supplier number: SKF SNL 513-611 K7 | EAN 7316571227955
This product has been discontinued.

↓ Documents (1) ✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Seat diameter: 120 mm
  • Material (bearing housing): Cast iron

Product description:

  • Split upright bearing housing for pendulum roller bearings

Documents

⤓ Technical data sheet PDF

All Features

Seat diameter
120 mm
Material (bearing housing)
Cast iron
Housing type
Plummer/pillow block
Centre height (pillow block)
80 mm
Housing configuration
Two-piece
Number of bolt holes for fasteners
2
Material, housing
Cast iron
Centre distance between bolt holes
230 mm
Diameter of bearing seat
120 mm
Bearing housing seal type
Without
Attachment bolt diameter
16 mm
Mounting arrangement
Through shaft/Shaft end
Housing lubrication feature/possibility
Grease
Width of bearing seat
51 mm
  • Brand SKF
  • EAN 7316571227955
  • Supplier number SKF SNL 513-611 K7
